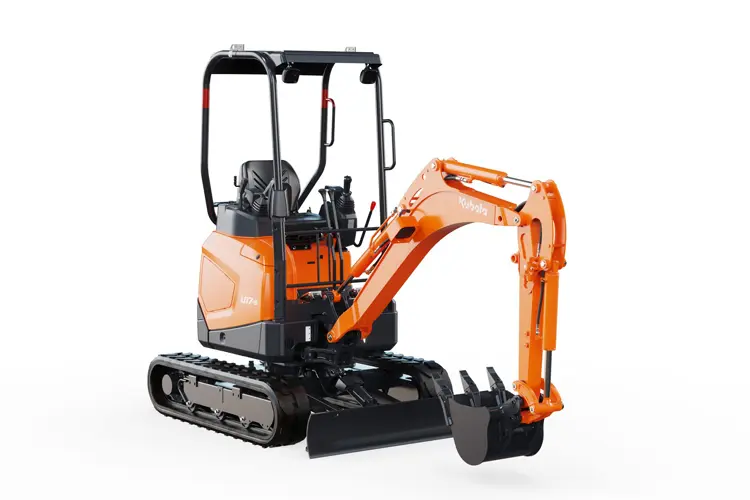

Kubota U17-5 Mini Excavator

General Information

• Description: Mini Excavator – Variable Tracks – ROPS

• Model: U17-5

• Manufacturer: Kubota

• Type: Mini Excavator

• Engine: Kubota D902-E4-BH-6EU Diesel Engine

• Engine Displacement: 54.8 cu. in. (898 cc)

Engine Performance

• Gross Power: 16.1 HP @ 2,300 RPM

• Net Power: 15.1 HP @ 2,300 RPM

Operating Specifications

• Operating Weight: 3,902 lbs.

• ROPS/OPG: ROPS Canopy / OPG Level I

• Tail Swing: Zero-Tail Swing

• Tracks: Rubber Tracks

• Standard Track Width: 9″

• Variable Track Width: 39.4″–51.2″

Dimensions

• Overall Length: 11′ 7.7″

• Overall Height: 7′ 9.3″

• Ground Clearance: 6.1″

Hydraulic System

• Hydraulic Pump Capacity: 4.6 GPM

• Auxiliary Hydraulic Flow: 7.3 GPM

• Hydraulic Oil Capacity: Not specified

Digging & Operating Performance

• Bucket Breakout Force: 3,547 lbs.

• Arm Breakout Force: 1,958 lbs.

• Travel Speed: 1.4 / 2.7 MPH

• Max. Traction Force: 3,170 lbs.

• Swing Speed: 9.4 RPM

• Boom Swing: 63° Left / 58° Right

Digging Dimensions

• Max. Digging Depth: 7′ 6.2″

• Max. Digging Radius: 12′ 8.8″

• Max. Digging Height: 11′ 6.2″

• Max. Dumping Height: 8′ 1.2″

Capacities

• Fuel Tank Capacity: 5.3 gal.

• Hydraulic Oil Capacity: Not specified
