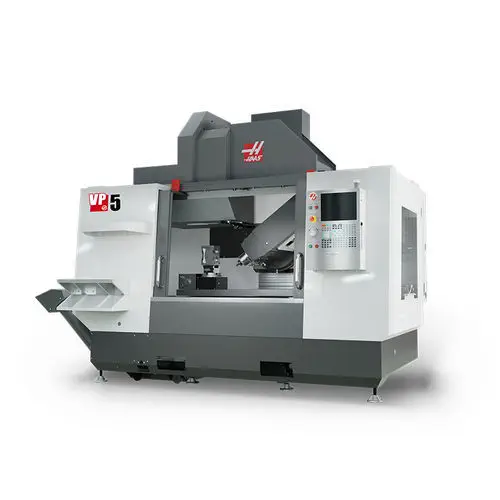

4-axis CNC machining center VP-5 Prismatic
Characteristics
- Number of axes
- 4-axis
- Spindle orientation
- vertical
- Structure
- rotating table
- Spindle mount
- BT 40, CAT40
- Number of tool stations
- 50 tools
- Other characteristics
- direct-drive, rigid, multi-spindle
- X travel
- 1,016 mm
(40 in) - Y travel
- 660 mm
(25.98 in) - Z travel
- 635 mm
(25 in) - Rotational speed
- 8,100 rpm
(50,894 rad.min-1) - Power
- 22.4 kW
(30.46 hp) - Work feed X-axis
- 18 m/min
- Work feed Y-axis
- 18 m/min
- Work feed Z-axis
- 18 m/min
- Table load capacity
- 1,588 kg
(3,501 lb) - Tool weight (max)
- 5.4 kg
(11.9 lb) - Tool-changing time
- 1.8 s
- Weight
- 6,967 kg
(15,359.61 lb)
