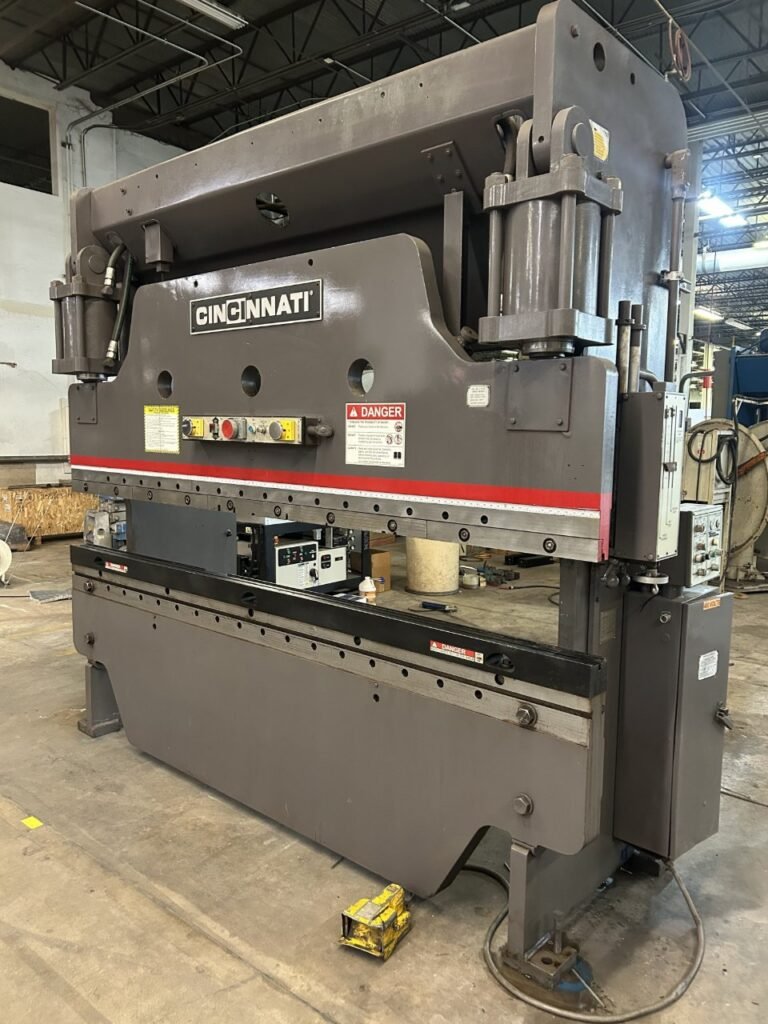

Cincinnati 135 CBx8 135 Ton x 10′ Hydraulic Press Brake(Not Working)
Product Description
General Info
- Stock #:120260004
- Location:Decatur, GA
- Brand:Cincinnati
- Model:135 CBx8
- Serial #:40370
- Approx. Shipping Weight:17,500 Lbs.
- Approx. Shipping Dimensions:10’10″ L x 5’10″ W x 120″ H
Specifications
- Max Capacity:135 Tons
- Overall Bed Length:10′
- Distance Between Housing:8’6″
- Ram Adjustment:5″
- Ram Speed (Hi/Med/Low):136/65/16 IPM
- Stroke:8″
- Electrical:460V/3PH
Equipped With
Dual Palm Button Controls, Foot Pedal, Emergency Stop, Stroke Adjustment (Top Stop / Bottom Stop / Speed Change), Mode Selector (Single Stroke / Inch / Continuous), Down Stroke Speed Control (High / Medium / Low), Tonnage Adjustment
Additional Info
This machine has a bad main control board it is damaged beyond repair it will need to be retrofitted with a new control. Both of the ram cylinders leak and the two main control valves have been removed to use for another machine.
