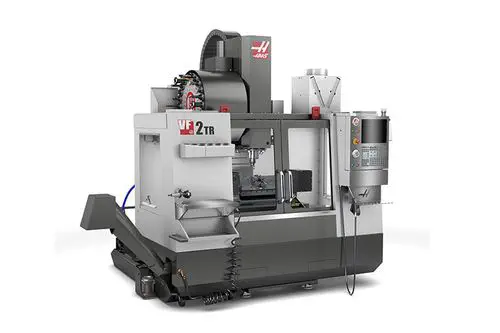

5-axis CNC machining center VF-2TR
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40, HSK A-63
- Number of tool stations
- 30 tools
- Other characteristics
- high-speed, direct-drive, with automatic tool changer
- X travel
- 762 mm
(30 in) - Y travel
- 406 mm
(15.98 in) - Z travel
- 508 mm
(20 in) - Rotational speed
- 8,100 rpm
(50,894 rad.min-1) - Power
- 22.4 kW
(30.46 hp) - Work feed X-axis
- 25,400 mm/min
(16.67 in/s) - Work feed Y-axis
- 25,400 mm/min
(16.67 in/s) - Work feed Z-axis
- 25,400 mm/min
(16.67 in/s) - Table load capacity
- 1,361 kg
(3,000 lb) - Tool-changing time
- 2.8 s
- Weight
- 3,765 kg
(8,300.4 lb)
